TRIG TN70 WAAS GPS Receiver and Antenna TRIG TN70

Click here to purchase or contact the seller of this item on eBay

Current Price: 2,918.99 USD

Model Number: TRIG TN70

Product Specification:

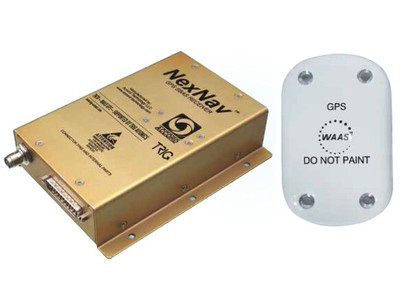

TRIG TN70 WAAS GPS Receiver and Antenna

If you are an aircraft owner looking for an affordable ADS-B Out solution with superior performance then the TN70 provides a cost-effective way to add a compliant WAAS GPS receiver to your ADS-B installation.

  • WAAS GPS receiver. includes antenna
  • Fully compliant, 2020 ready
  • Completes your ADS-B solution
  • Requires no panel space - easy to install
  • Compatible with any Trig transponder

If you already own a suitable Trig transponder then our TN70 kit is the easiest way to become ADS-B compliant. The TN70 includes a certified WAAS GPS and companion WAAS GPS antenna, designed to enhance your aircraft via a simple install that will deliver excellent ADS-B Out performance. The TN70 takes no panel space, it?s fitted discretely as a standalone GPS so you can retain and use your existing panel equipment. Each TN70 includes an install kit for the WAAS GPS and fixing screws for the WAAS antenna along with relevant FAA 8130 certification.

If you need a Trig transponder to complete your TN70 ADS-B solution, then simply add one of our class leading products certified to TSO C166b, the latest ADS-B standard. A Trig transponder is the hub of an ADS-B Out system, using extended squitter to communicate with ground stations and suitably equipped aircraft. Trig transponders use 1090ES technology - the ICAO?s International Standard.

** , in most cases items will be ready to be shipped in 10-15 business days, in some cases the item will have to be obtained directly through the manufacturer and can take a before it is ready to be shipped. We will not be able to provide any estimated lead time or shipping time as it is defined by the manufacturers availability. Pay attention to dispatch time/handling timefew months

** All photos are , verify you are buying the correct product using the Model/SKU number.stock photo

original** , in case of any return being accepted (case by case) you will be charged plus the Most items are non-returnable20% restocking fee and return shipping cost.

** If this product is subject to a core return, you will have 5 days from the day you place the order to send your core to us. Please contact us for core return information.

Shipping Policy

for the rate shown in shipping section of the listing.Less than 1lb will be shipped USPS, Fedex or UPS

and you will be paying the shipping fee charged by the carrier.Above 1lb and below 50 lbs will be calculated after checkout

and you will be responsible to pick up , we may be able to help you with freight quotes but .Above 50 lb will be freight the buyer will be responsible to arrange shipping and pick up
    TN70 ? WAAS GPS TN70 GPS Antenna
    Certification TSO-C145c
    Beta 1 Receiver
    TSO C190
    Compliance DO-229D
    DO-178B level C
    DO-254 level C
    Supply Voltage (DC) 9-32 volts
    Typical Consumption @14V Typical: 0.2A
    Max: 0.3A
    Weight 1.06 lbs 0.62 lbs
    Dimension (HxWxL in.) 1.6? x 4.13? x 6.5? 0.73? x 3.0? x 4.7?
