RAMI – AV-74 TRANSPONDER ANTENNA – DME – ADS – B - 960 – 1220 MHzClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 199.00 USD |
RAMI AV-74 Transponder Blade Antenna for ADS-B Systems
Manufacturer Part Number: AV-74
Condition: New
Year: 2024
Manufacturer: RAMI
Model: AV-74
Category: Aviation Equipment
Subcategories: Navigation Systems, Communication Systems, ADS-B Equipment
Height: 6.00 in
Length: 12.00 in
Width: 9.00 in
Weight: 2.00 lb
Description

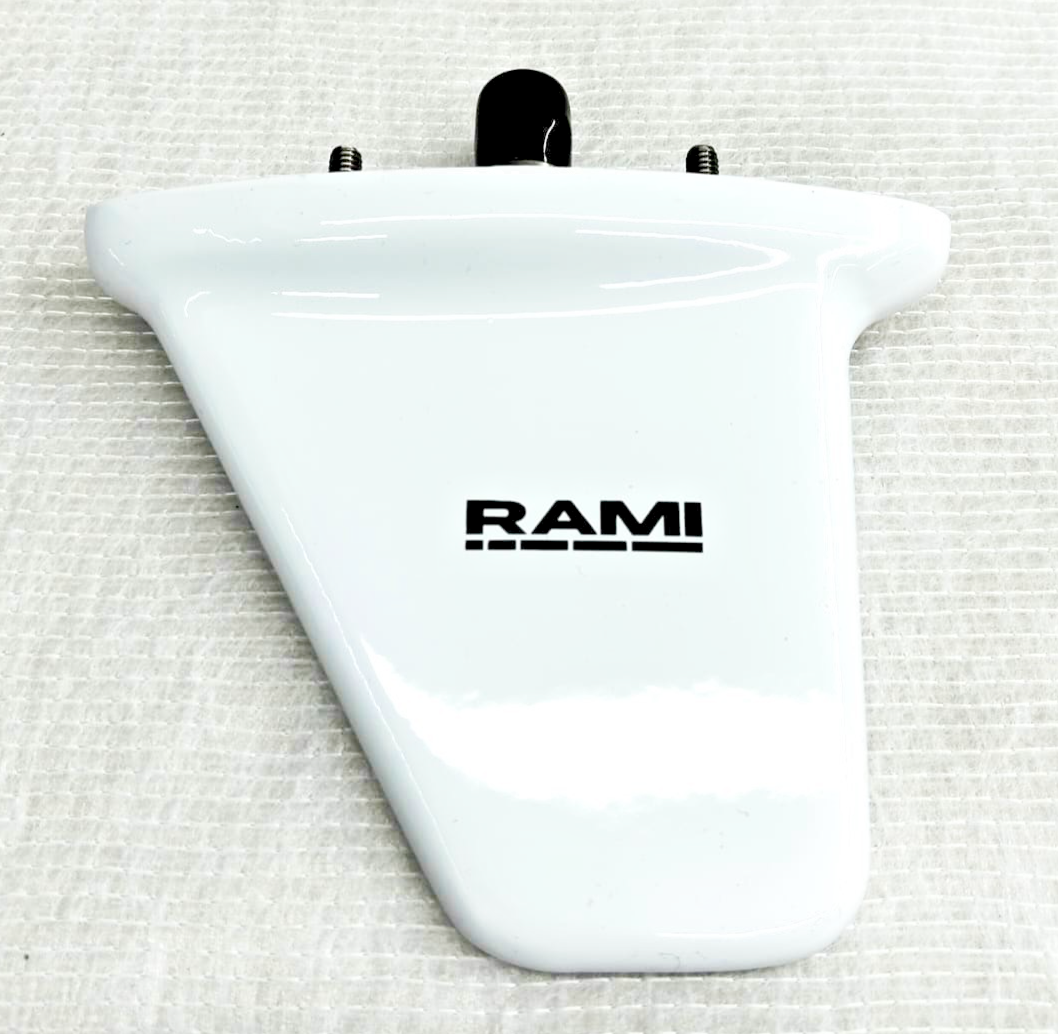

The RAMI AV-74 is a transponder blade antenna designed for use in aviation communication and navigation systems.
Operating within a frequency range of 960-1220 MHz, this antenna is ideal for DME or ADS-B systems. Certified by the FAA TSO C66c, C74c, the AV-74 ensures reliable and compliant performance. The antenna comes with 0.425-inch long mounting bolts for easy installation.
The AV-74 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105.
Frequency: 960-1220 MHz
Impedance: 50 Ohms Nominal
VSWR: 1.5:1 Maximum
Polarization: Vertical
Pattern: Omni-Directional
Generated by OLG | Genius Lister – LDMCH | Page 1 of 2Connector: “BNC” Female
Max Height: 3.4
RF Power Capacity: 2.5 kW Peak
|
|
|
|
|
|
|
