Cessna Seat Rail Wear Inspection Tool AD 2011-10-09 Coleman Aero


Click here to purchase or contact the seller of this item on eBay

Current Price: 89.00 USD

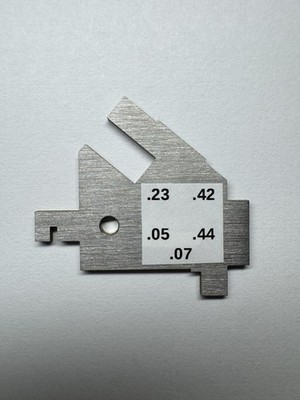

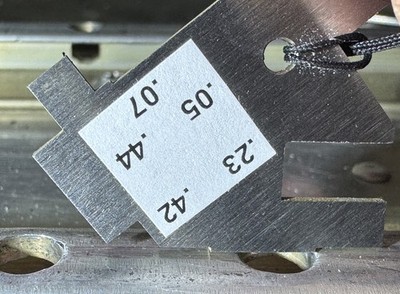

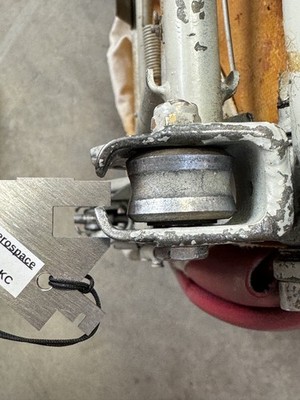

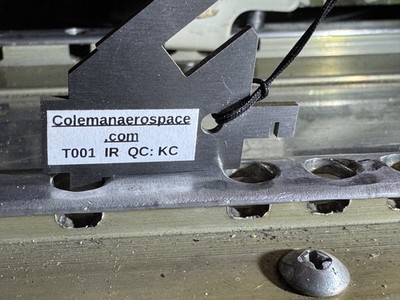

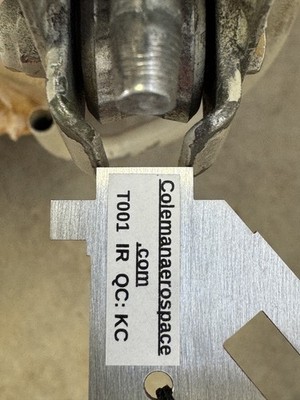

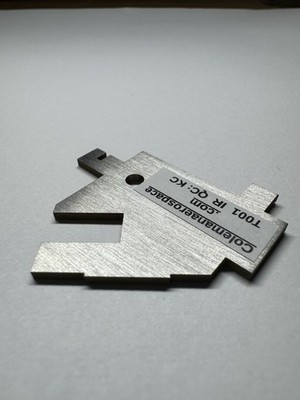

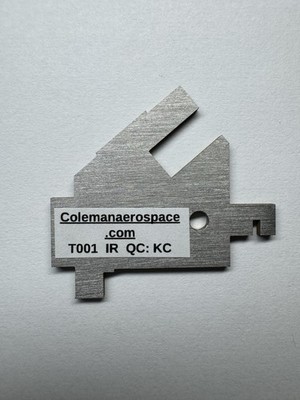

This tool designed by Coleman Aero reduces inspection time and simplifies inspection of many Cessna seat rails per airworthiness directive 2011-10-09. This tool is cut using an extremely precise manufacturing process. It is made from hardened steel to be durable and last for years. This tool inspects 4 dimensions per the AD. Other manufactures tools only have one dimension or are significantly more expensive. T001 from Coleman Aero produces value through quicker turnaround for mechanics, saves owner/operators money, and simplifies the recurring inspection of Cessna seat rails. Comes with thorough instructions for effective use of the tool.
Critical dimensions:
-Tang thickness (0.050")
-Tang gap width (0.44")
-Tang length (0.23")
-Seat pin locking engagement hole wear depth (0.020")
-Seat pin locking engagement hole diameter (0.42")
Per the AD this tool applies to the Cessna Aircraft Company Models 150, 152, 170, 172, 175, 177, 180, 182, 185, 188, 190, 195, 206, 207, 210, T303, 336, and 337 Airplanes.
Always refer to the most current revision of AD 2011-10-09 published by the FAA
