Raytheon / Magnavox RECEIVER/Transmitter p/n 706624-802 RT-1288A / ARC-164 (V)Click here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 1,800.00 USD |
1 each RT1288A/ARC164 RECEIVER TRANSMITTER

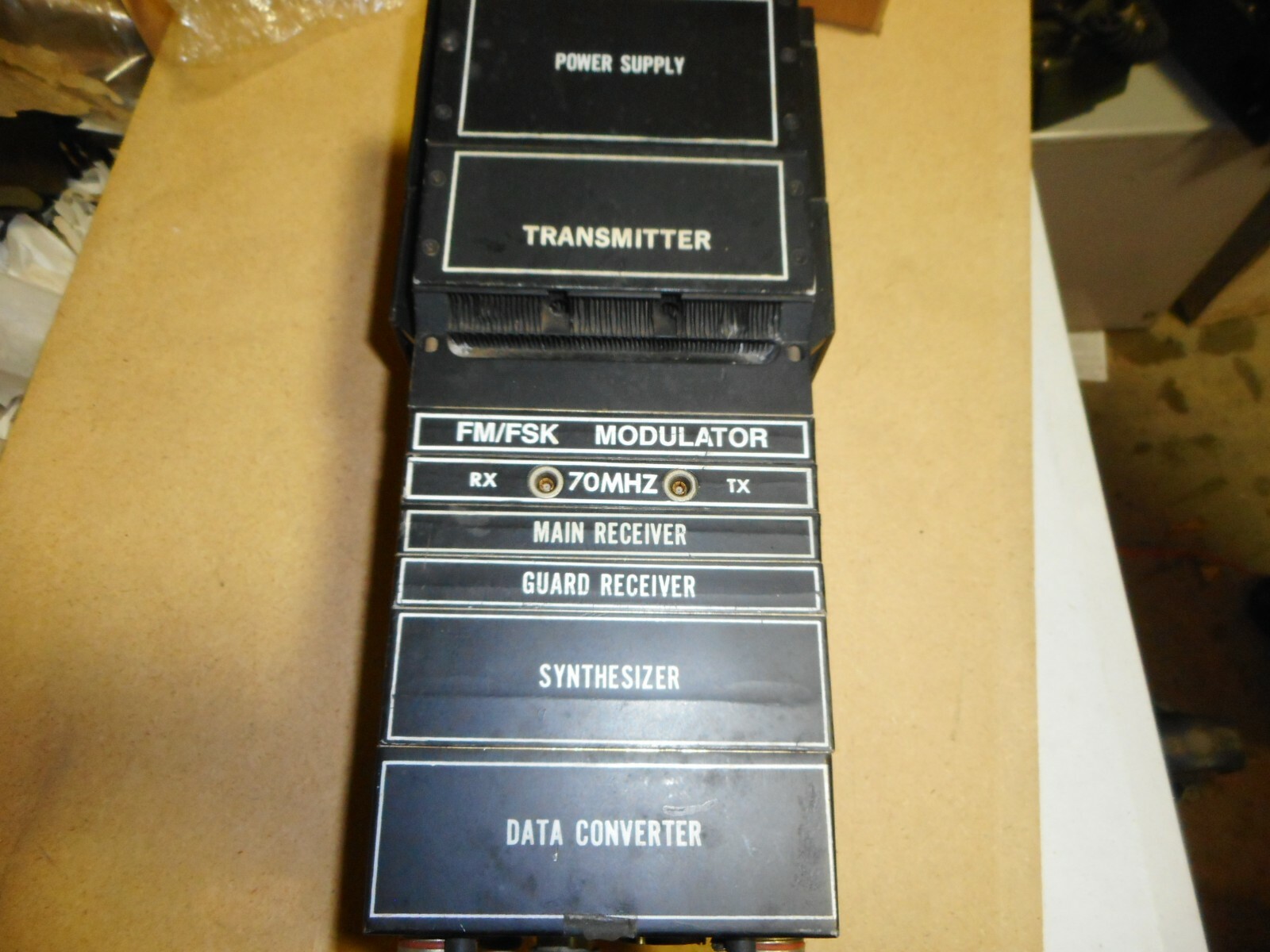

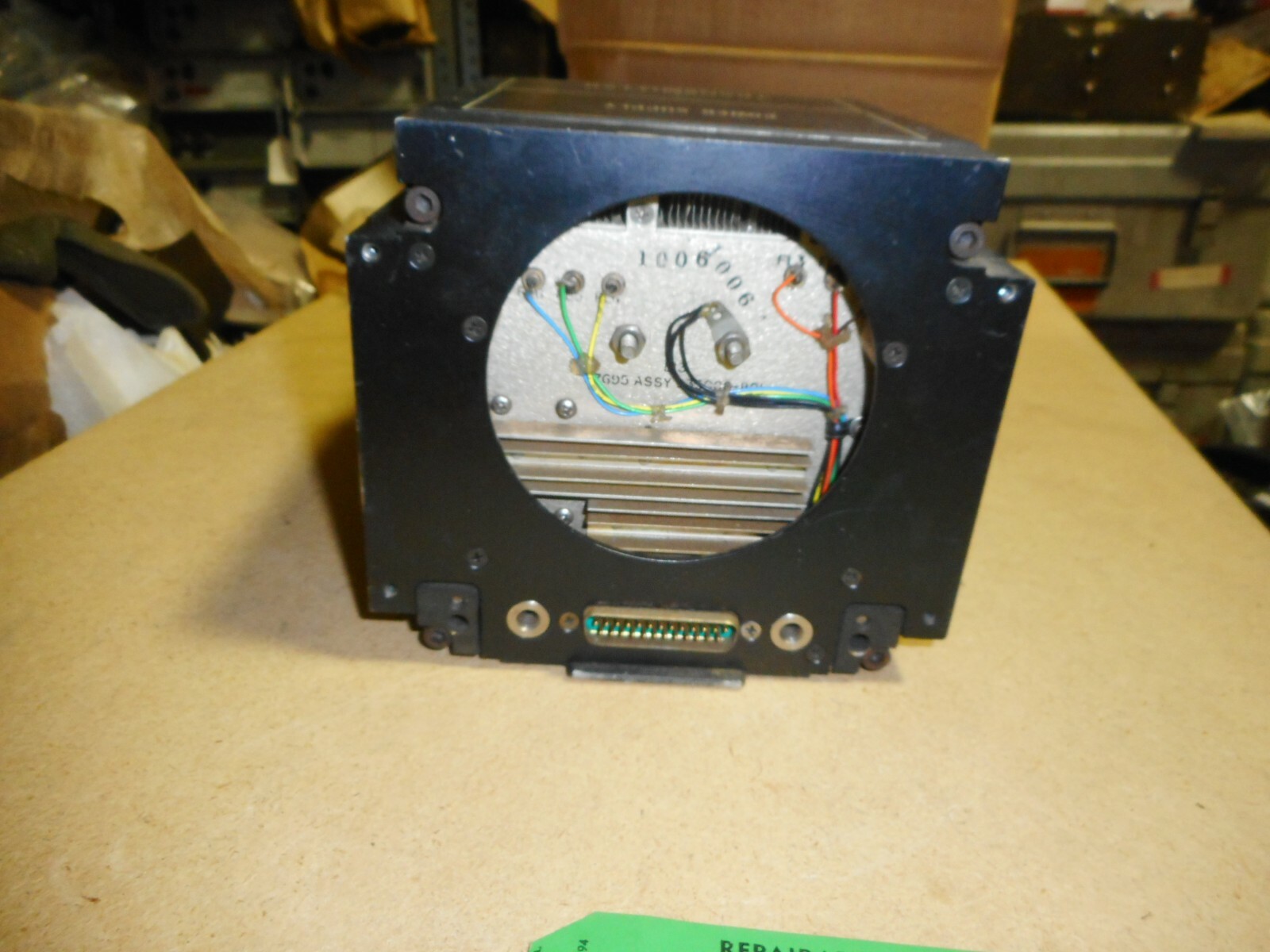

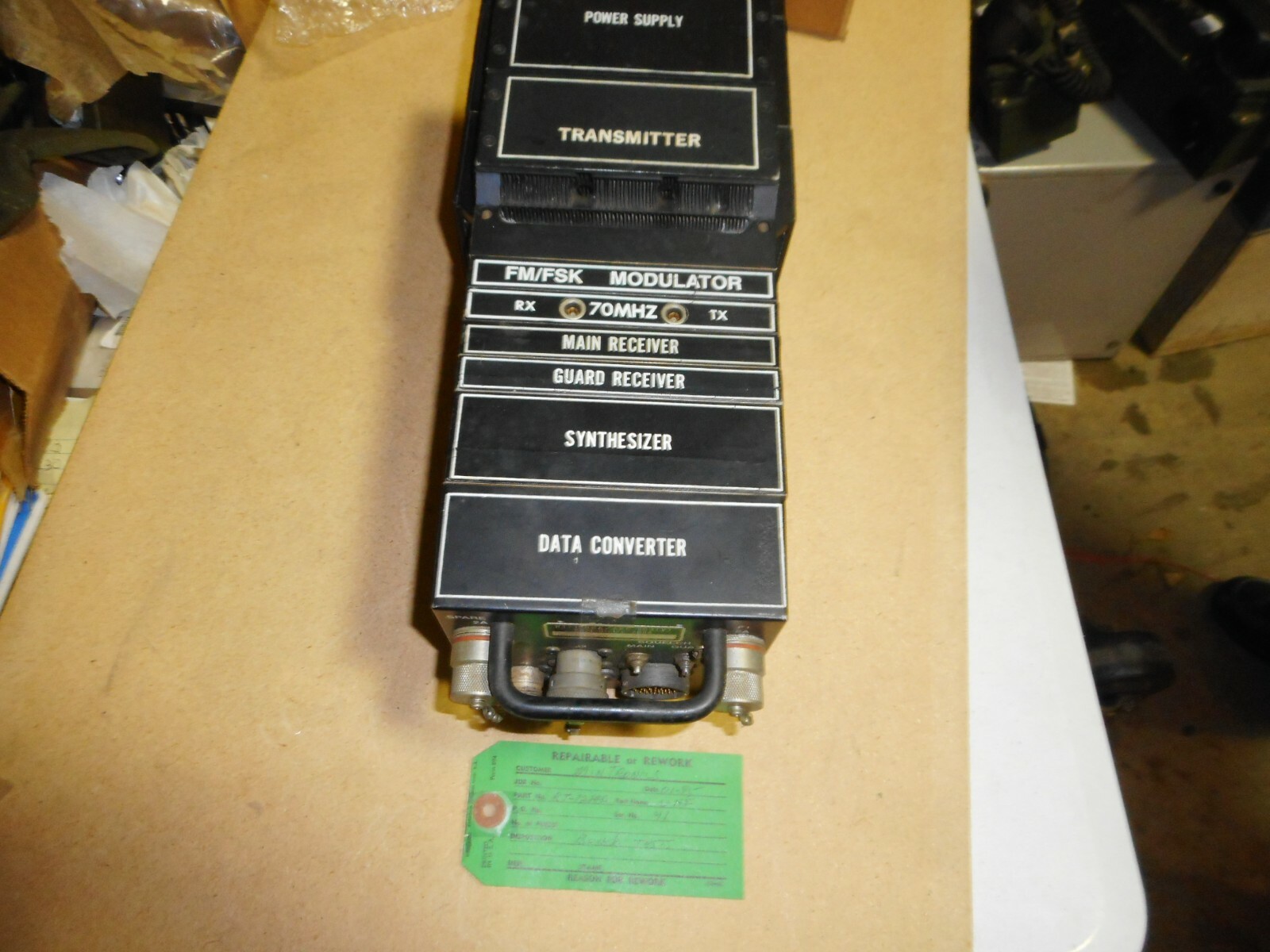

AS SHOWN IN PHOTOS
COMPLETE UNIT
NOT WAY TO TEST SO SOLD AS IS
ANY QUESTIONS PLEASE ASK BEFORE BIDDING
********NO EXPORT OF THIS ITEM*****
OVERALL LENGTH 12.920 INCHES NOMINAL
OVERALL HEIGHT 5.525 INCHES NOMINAL
OVERALL WIDTH 5.990 INCHES NOMINAL
DC VOLTAGE RATING 24.0 VOLTS MINIMUM AND 33.0 VOLTS MAXIMUM
FREQUENCY RATING 225.000 MEGAHERTZ MINIMUM AND 399.975 MEGAHERTZ
MAXIMUM
END ITEM IDENTIFICATION AN/ARC-164(V)RADIO SET
JOINT ELECTRONICS TYPE RECEIVER-TRANSMITTER,RADIO
DESIGNATION SYSTEM ITEM
NAME
JOINT ELECTRONICS TYPE RT-1288A/ARC-164(V) TRANSMITTER BAND QUANTITY 1
TRANSMITTER CHANNEL 7000
QUANTITY
RECEIVER BAND QUANTITY 1
RECEIVER CHANNEL QUANTITY 7000
POWER OUTPUT 10.000 WATTS MINIMUM AND 12.000 WATTS MAXIMUM
INSTALLATION DESIGN AIRBORNE
INPUT FREQUENCY RATING 1.500 KILOHERTZ NOMINAL
OUTPUT FREQUENCY RATING 0.500 KILOHERTZ MINIMUM AND 1.000 KILOHERTZ
MAXIMUM
TRANSMITTER EMISSION TYPE A2 AND A3 AND F1 AND F3 AND F9
RECEIVER EMISSION TYPE A2 AND A3 AND F1 AND F3 AND F9
DESIGN CONTROL REFERENCE 706624-802
THE MANUFACTURERS DATA 37695
|
|
|
|
|
