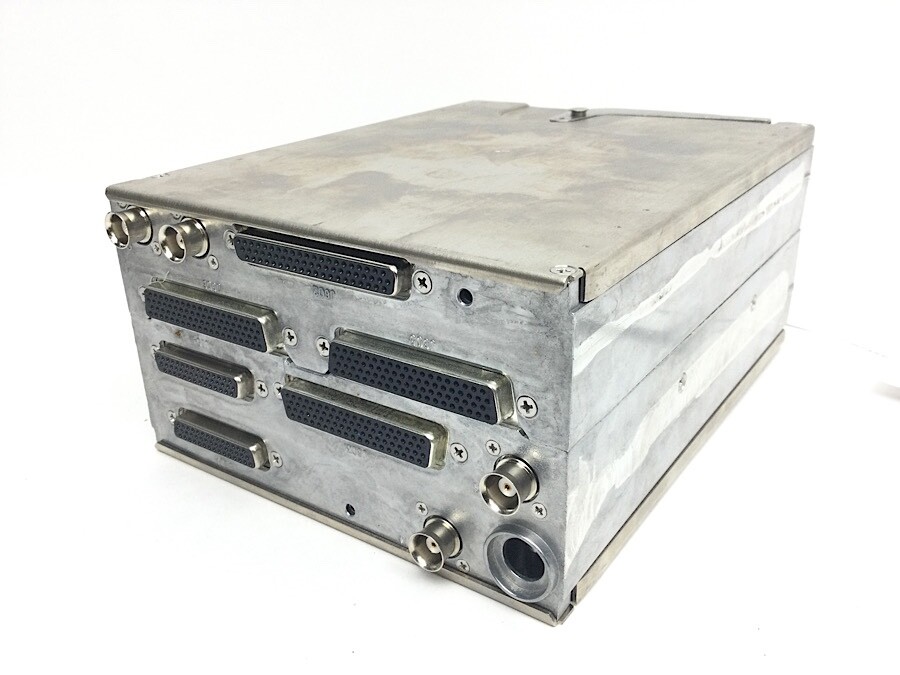

Garmin GIA 63WClick here to purchase or contact the seller of this item on eBay |
![]() |
|
Current Price: 9,500.00 USD |
- Microprocessor-based input/output Line Replaceable Unit (LRU) used in a Garmin Integrated Flight Deck
- Communicates with the GDU via Ethernet high-speed data bus (HSDB), and with other LRUs using RS-485/422, and ARINC
- All configuration is done through the GDU
- Main processor that interfaces with all LRUs in the G1000 sub-system and performs calculations for the GFC 700 autopilot (if equipped)
- 15 channel WAAS certified GPS receiver
- VHF COM transceiver that provides tuning from 118.00 to 136.992 MHz in 25 kHz or 8.33 kHz spacing for 760 or 2280 channel configuration respectively
- VOR/ILS localizer receiver that provides tuning from 108.00 to 117.95 MHz in 50 kHz increments
- An ILS glideslope receiver that provides tuning from 328.6 to 335.4 MHz as paired with the frequency tuned on the VOR/ILS localizer receiver
|
