uAvionix AV-30C Multi-Function Display, PFD (Primary Flight Display) Certified

Contact us for additional savings on the AV-30C

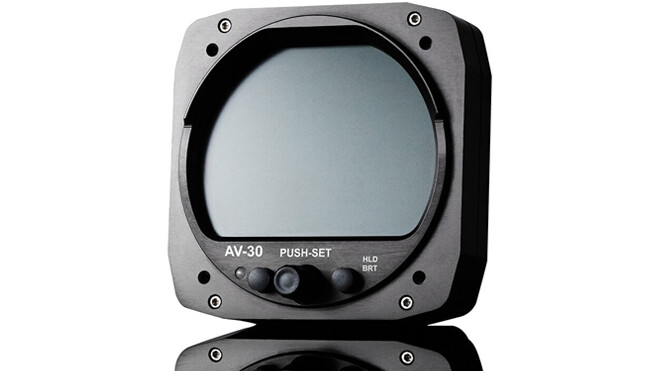

The AV-30C is a highly capable, fully digital, multi-mode instrument that mounts in the legacy 3⅛ inch round instrument panel cutout. It can be field configured as either an Attitude Indicator (AI) or a Direction Indicator (DG), contains an internal battery, and allows for a wide variety of pilot customization.

When configured as an AI, primary attitude and slip are always displayed. The unused portions of the display area can be customized by the pilot to show a variety of textual and graphical data-overlay fields. Up to 3 pages may be customized by the pilot with a fourth dedicated fully decluttered page.

When configured as a DG, non-slaved direction of flight or GPS track may be configured for display. Multiple display presentations can be selected by the pilot including a compass rose, GPS CDI, and GPS arc view. The unused portions of the display area can similarly be configured for a variety of textual data-overlays.

In both operating modes, the pilot may select from a variety of visual styles that are intended to improve visual compatibility with legacy aircraft instrumentation and preserve the look-and-feel of older aircraft applications. A wide variety of supplemental functions, including audio envelope alerting, derived angle of attack presentation, g-load display, and more are provided. An internal battery allows operation for up to 2 hours in the event of aircraft power loss.

"Retro-Fit" Your Cockpit with a Digital Upgrade.
Upgrade your legacy vacuum-driven instrument to digital precision attitude and directional gyro customizable display.

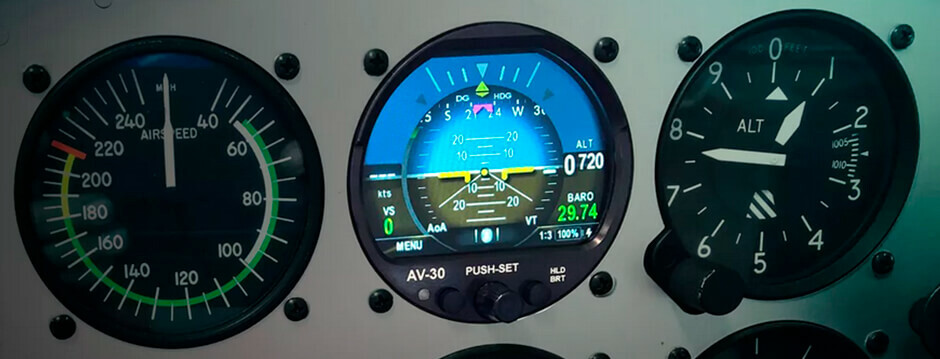

By installing two AV-30-C displays, one configured as an Attitude Indicator, and the other as a Directional Gyro to replace your outdated problem-prone vacuum system. Keep your panel and upgrade your view.  The AV-30-C blends into your existing panel seamlessly.  By mounting from behind, it preserves the original look and eliminates the need for cutting or replacing your panel.  722

Features:

Input Voltage Nominal: +10 to +32 VDC

Input Voltage Max: +60 VDC

Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)

Input Power Max: 12 Watts (1.0 Amps @ 12VDC)

Required Circuit Breaker: 2 Amp

Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C

Physical Specs:

Mounting Configuration: 3 1/8” Round Instrument Hole

Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches

Weight: 0.50 Lbs.

Electrical Connector: 15 Pin Male D-Sub

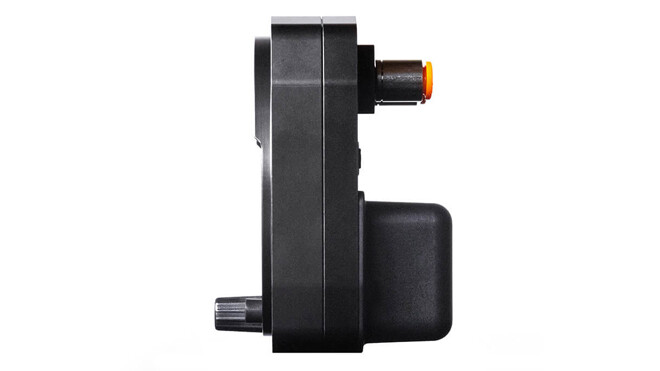

Pneumatic Connectors: ¼” OD Quick Connect

Mounting: (4X) #6-32 Machine Screws

Case Material: Billet Aluminum

Environmental Specs:

Operating Temp: -20°C to +55°C

Storage Temp (48 Hrs): -30°C to +80°C

Humidity (48 Hrs): 90% RH

Display Specs:

Diagonal Size: 3” Circular

Contrast Ratio (Typical): 500

Brightness (Typical): 1000 cd/m2

Viewing Angle Left/Right:60°

Viewing Angle Up: 45°

Viewing Angle Down: 10°

Backlight Lifetime (Typical): 50,000 Hrs

1123
