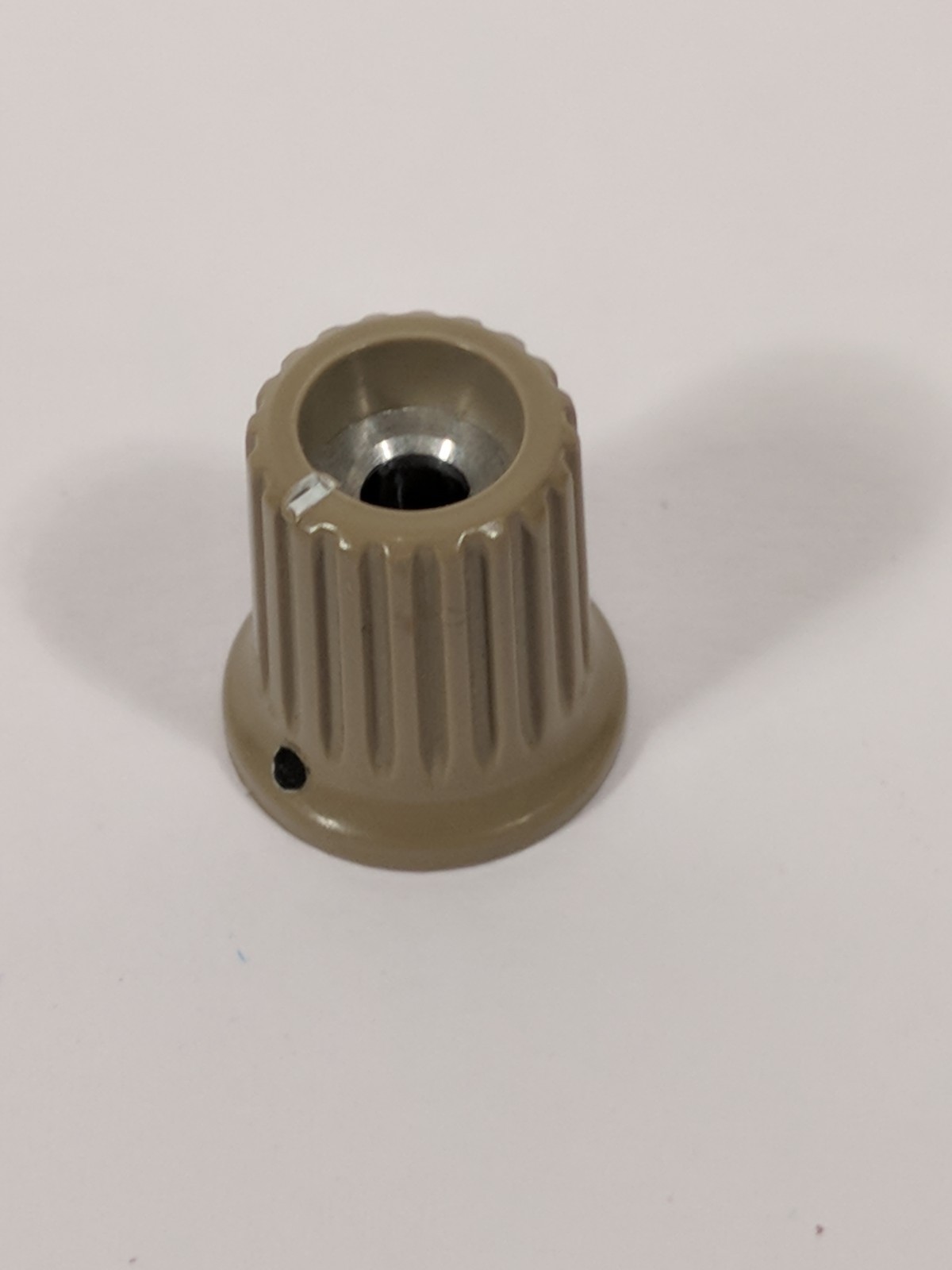

Tektronix 366-1077-00 KNOB, GRAY W/SETSCREW, 1 H
Auction is for one (1) knob and set screw.
Free Shipping
| NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|
| 5355-00-419-4045 | 5355 | 004194045 | KNOB | 03263 |
| AARX | Inside Diameter | 0.275 inches minimum and 0.279 inches maximum |
| AAWY | Counterbore Diameter | 0.375 inches nominal |
| AAWZ | Counterbore Depth | 0.146 inches nominal |
| ABFR | Setscrew Hole Quantity | 1 |
| ABFU | Distance from Hole Center to Knob/Skirt Base | 0.271 inches nominal |
| ABFY | Overall Depth | 0.531 inches nominal |
| ABHG | Gripping Surface Condition | Grip aid |
| ABHH | Shaft Accommodation Style | Counterbored |
| ABKV | Outside Diameter | 0.385 inches nominal |
| ABSL | Skirt Style | Flared |
| ABSP | Reference Marking | DOT |
| ABSX | Attachment Method | Setscrews |
| ADUM | Overall Thickness | 0.531 inches nominal |
| CBSC | Screw Drive Type | Hexagon socket |
| CMLP | Thread Quantity per Inch | 40 screw hole |
| CQJX | Nominal Thread Size | 0.125 inches screw hole |
| CRPJ | Skirt Outside Diameter | 0.500 inches nominal |
| CRWX | Skirt Design | Nondetachable |
| HUES | Color | GRAY |
| MATT | Material | Plastic |
| STYL | Style Designator | Round |
| THSD | Thread Series Designator | Unc screw hole |
|
