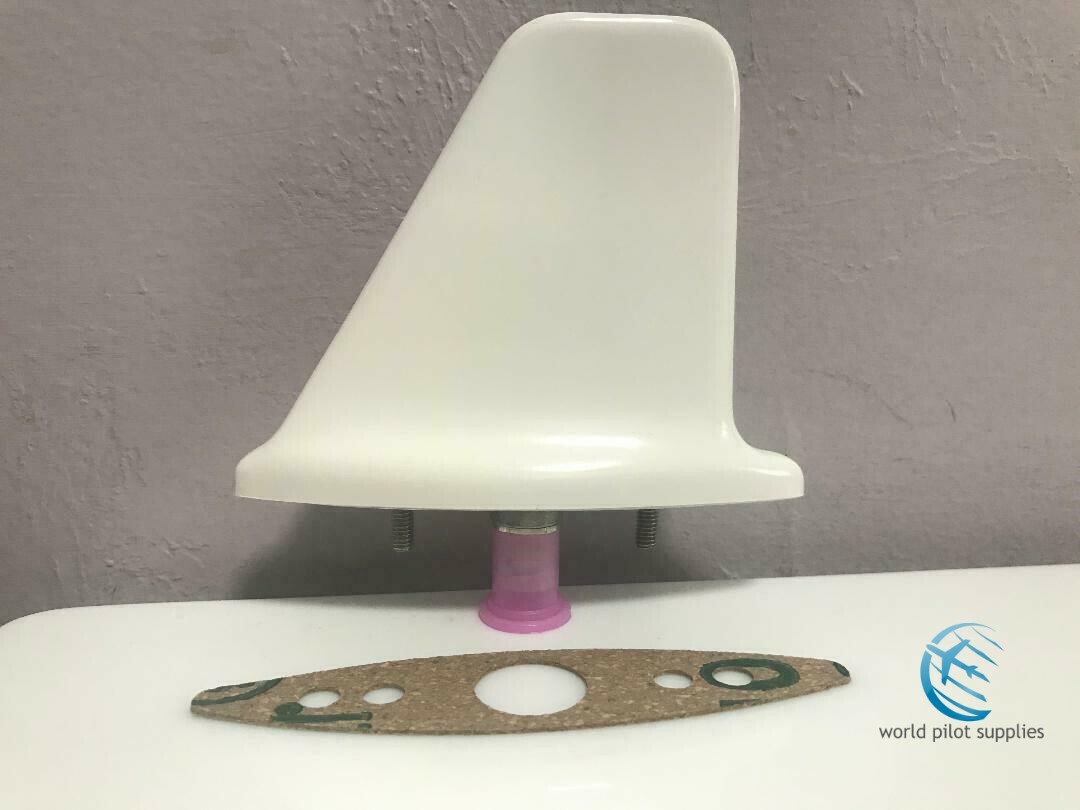

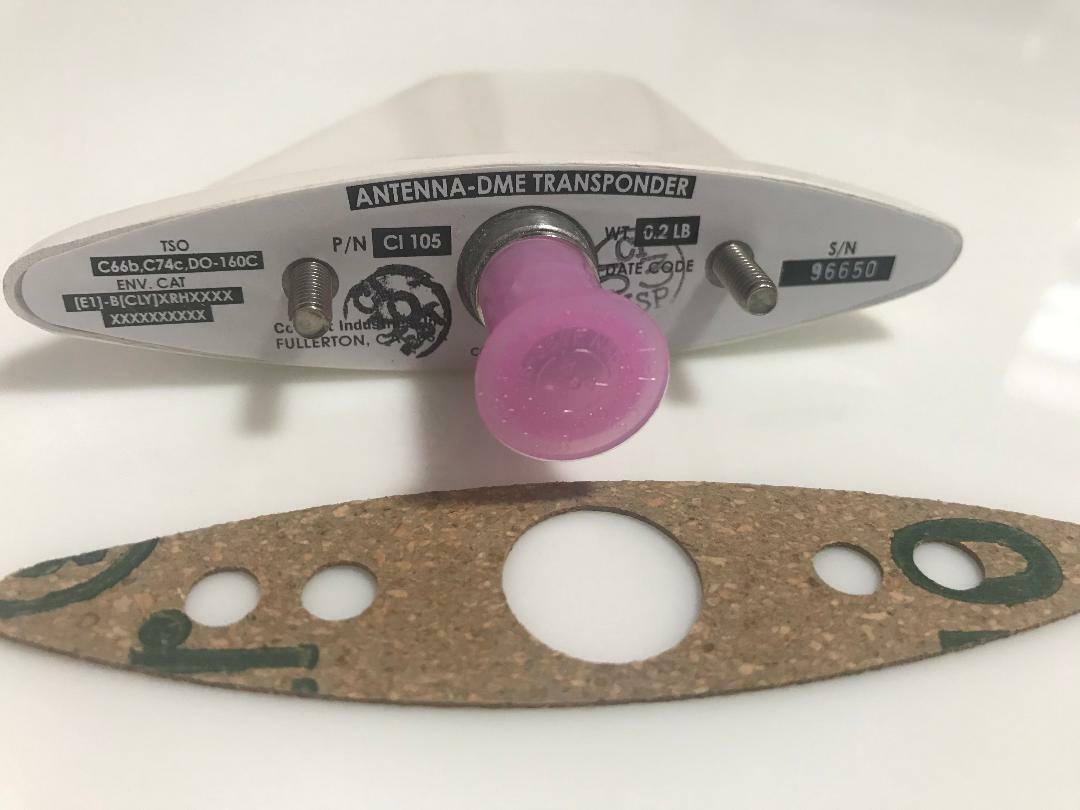

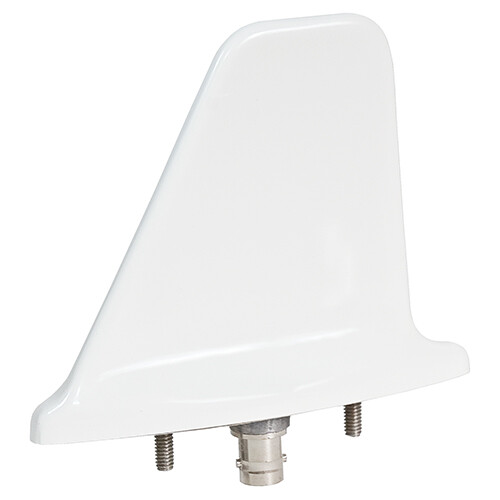

ADS-B, Transponder or DME Blade Antenna, from Comant Industries, p/n CI-105


Click here to purchase or contact the seller of this item on eBay

Current Price: 239.99 USD

ADS-B/Xponder/DME Blade Antenna, from Comant Industries, p/n CI-105

The CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.

  • BNC connector
  • 960 MHz – 1220 MHz frequencies
  • Rated upto 400 Knots TAS at 25,000 ft

Features:

  • Encased in a glass reinforced polyester molded shell
  • Standard two stud mounting configuration
  • Includes a BNC connector
  • Weight:  0.24 lb
  • Dimensions:  3.23" Tall
  • Finish:  Polyurethane enamel
  • Connector: BNC
  • Frequency: 960 MHz to 1220 MHz
  • VSWR: 1.5:1 @ 960 MHz - 1220 MHz, maximum
  •  1.3:1 @ 1025 MHz - 1150 MHz, maximum
  • Polarization: Vertical
  • Radiation pattern: Equivalent to a 1/4 wave stub
  • Impedance: 50 ohms
  • Resistance DC: Open circuit
  • Power RF: 2.5 KW, max
  • Temperature: -54 deg C to 55 deg C
  • Airspeed: 400 knots TAS at 250 FL
  • Gasket: B10505
  • 823

FREE DOMESTIC SHIPPING with tracking number

For International Shipping* we use eBay's Global Shipping Program (Courier Service) for safe, fast and secured worldwide shipping.

*International Shipping is the cost of shipping the item to your destination country.  Please, be advise this cost does not include any import duties or fees your country's Customs might impose on the importation of this item.  We, have no control on the import duties or fees or the amount.
