ASPEN EVOLUTION EFD 2500 MAX

The Evolution 2500 MAX Package combines the powerful Pro MAX Primary Flight Display (PFD), the MFD1000 MAX Multi-function Flight Display (MFD), and the MFD500 MAX MFD to deliver Aspen’s total glass cockpit solution.

The Pro MAX PFD and MFD1000 MAX provide the safety and confidence of PFD redundancy. If your PFD fails, simply press the REV button on the MFD1000 MAX and it becomes the PFD – converting into an identical backup right in your primary instrument scan. This PFD backup means less stress and potential confusion in a pressure situation. The MFD500 MAX expands display area to put more flight data exactly where and the way you want it. No other GA glass cockpit system gives you this level of redundancy and confidence at any price.

Aspen makes the total glass cockpit experience both easy-to-use and affordable with patented retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.

Evolution 2500 MAX Package – your ultimate glass panel.

Evolution 2500 MAX System Features:

Advanced EFIS six-pack replacement

Pro MAX PFD/MFD1000 MAX redundancy backs up all critical sensors and systems

Twice the MFD display area for enhanced situational awareness

Built-in internal extended duration battery and emergency GPS

New, vibrant colors with the latest aviation glass

Higher reliability and faster refresh rates with the latest generation processors

Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display capable of displaying over million colors (140 pixels/inch)

Photo-quality moving maps and crisp, clear text

Terrain, traffic, maps and weather

ADS-B In weather and traffic1

Audio panel interface

Fully expandable and software upgradable – when new technology becomes available no need for unit replacement

Standard Evolution Synthetic Vision

Works with your existing avionics with the broadest autopilot/flight director integration

Lightest weight with easy system installation

1 with compatible ADS-B transceiver, receiver or transponder

Pro MAX PFD Features:

GPS-aided AHRS in the event of pitot static failure

Font and window enlargement capable

Airspeed and altitude tapes

Altitude alerter (and separate approach minimums alerting)

Full electronic HSI with dual bearing pointers

Base map with flight plan legs and waypoints, curved flight paths, and nearby navaids

Built-in GPS steering

Display of real-time winds aloft, OAT, TAS, and ground speed

Integral Air Data Computer and Attitude Heading Reference System (AHRS)

MFD1000 MAX Features:

Duplicate sensor set providing PFD redundancy on MFD if PFD fails

Allows removal of redundant mechanical backup instruments

Secondary HSI

Chart and countdown timers

Height above ground level (AGL) on navigation and terrain maps

METAR flags on navigation map

High resolution moving maps with hazard display overlays

ADS-B traffic and weather

Customizable screen layouts

Font enlargement

Charts and geo-referenced airport diagrams

MFD 500 MAX Features:

Chart and countdown timers

Height above ground level (AGL) on navigation and terrain maps

METAR flags on navigation map

High resolution moving maps with hazard display overlays

ADS-B traffic and weather

Customizable screen layouts

Font enlargement

Charts and geo-referenced airport diagrams

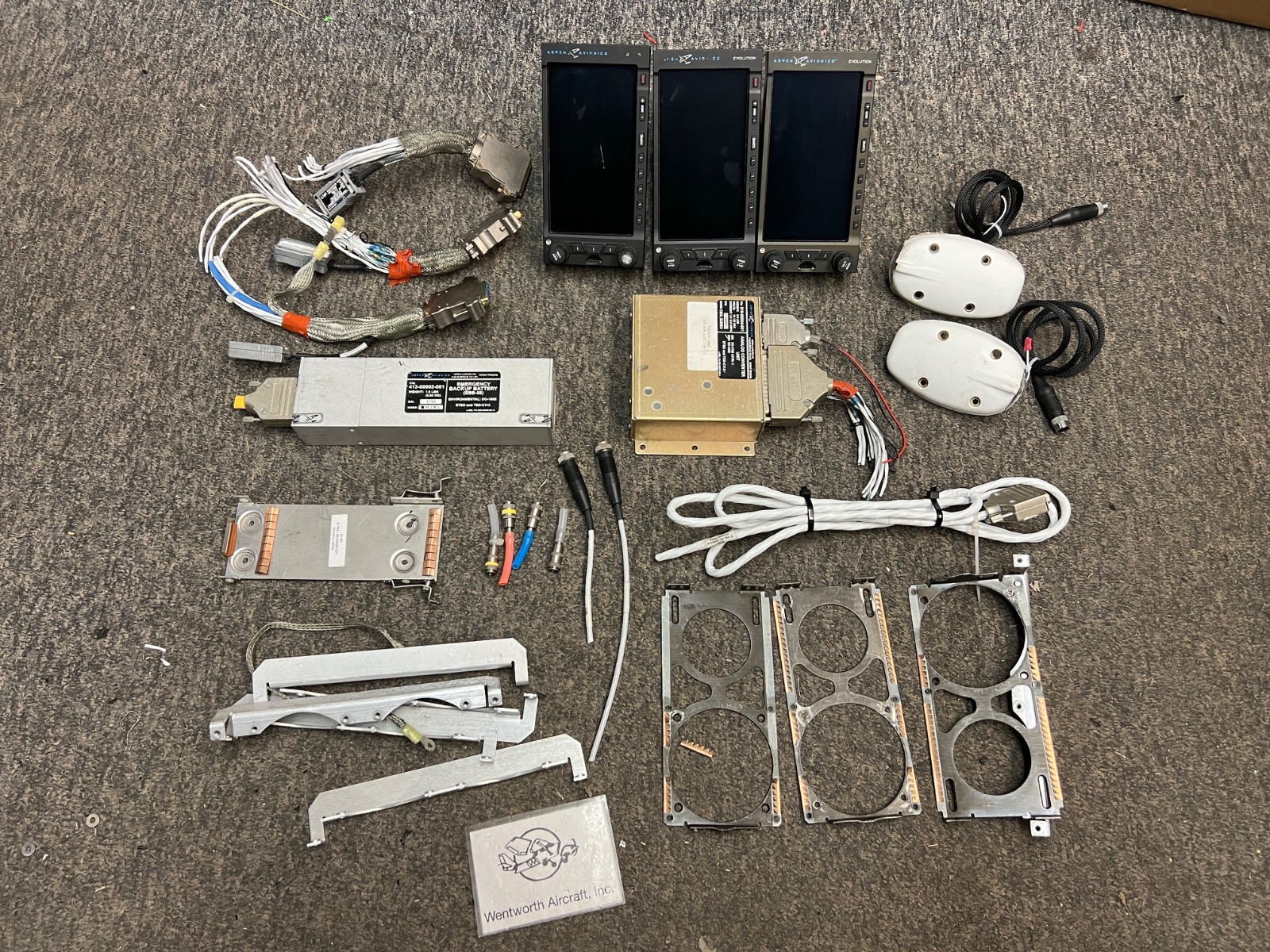

This sale includes:

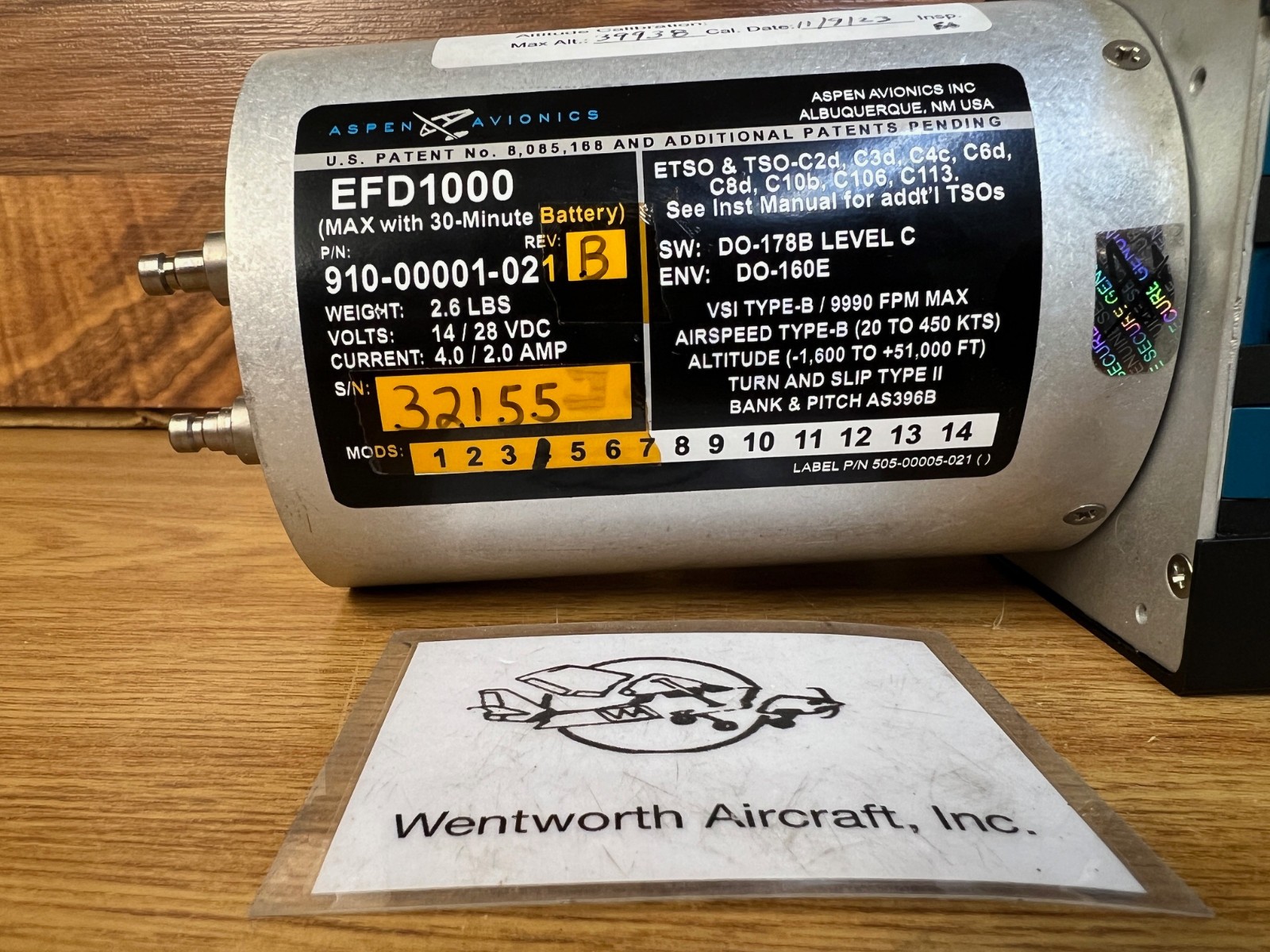

• EFD 1000 PFD MAX WITH INTERNAL BATTERY

    PN 910-0001-021 REV B

    S/N 32155

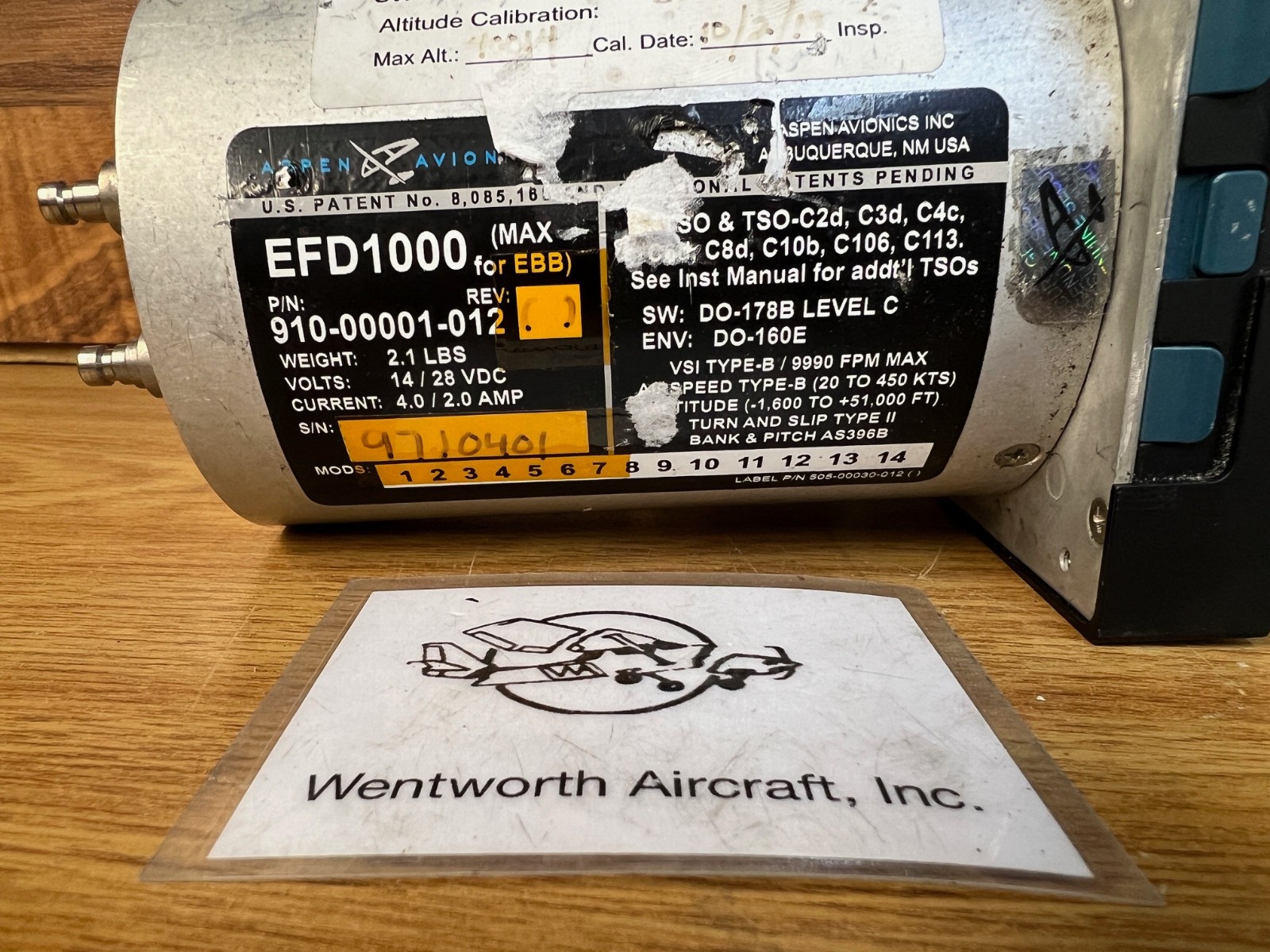

• EFD 1000 MFD MAX (EXTERNAL BATTERY)

    PN 910-00001-012 REV. ?

    S/N 9710401

    THIS UNIT DOES HAVE A SCRATCH ON THE     LENS BUT IT DOES NOT EFFECT THE PERFORMANCE OF THIS UNIT

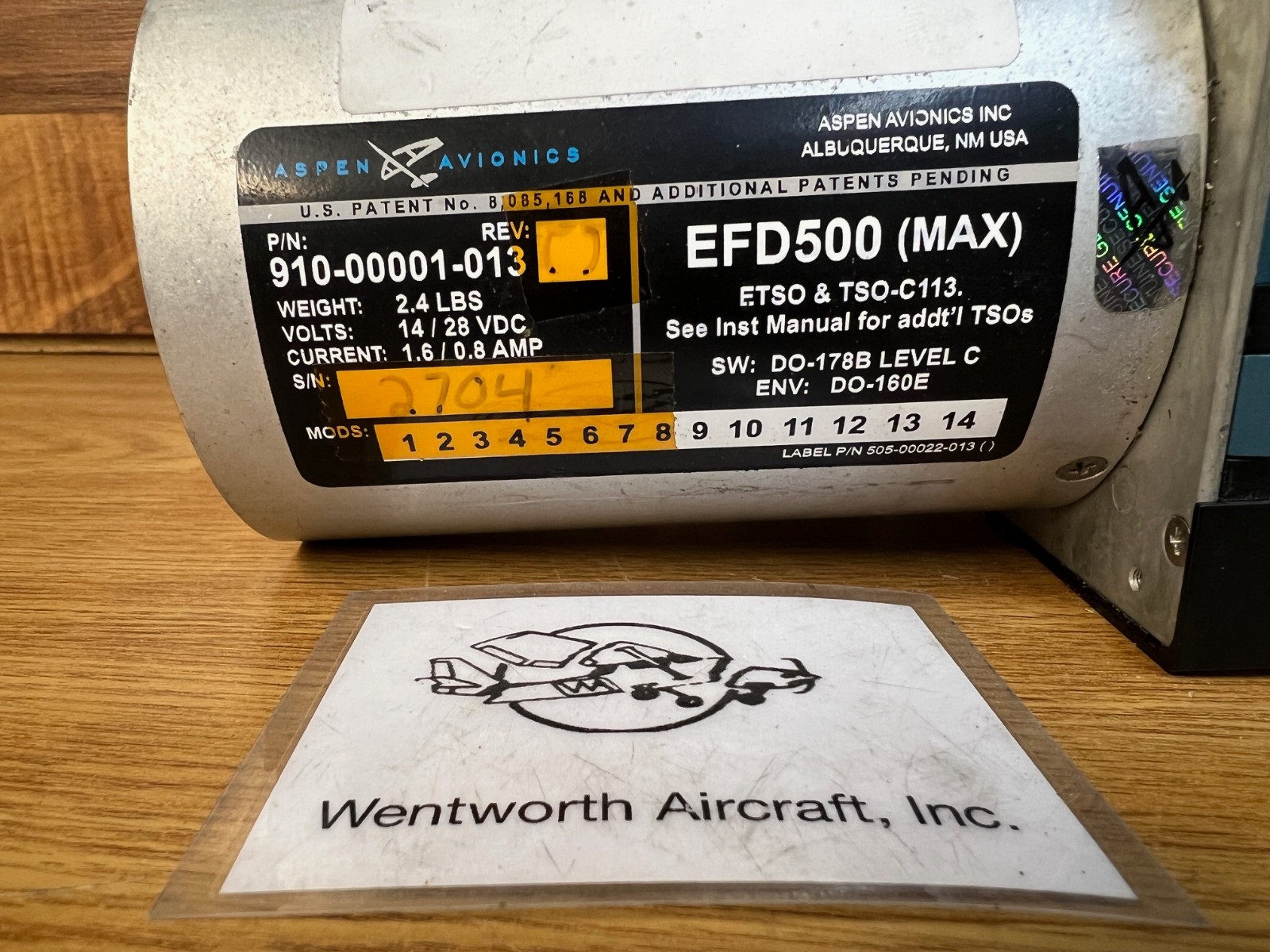

• EFD 500 MFD MAX WITH BUILT IN BATTERY

    PN 910-00001-013 REV. ?

S/N 2704

• CONFIGURATION MODULE

     EFD 1000 PRO

     PN 910-00005-004

     SYSTEM PN 920-00004-002

     S/N 13143

• CONFIGURATION MODULE

    EFD 1000 MFD

    PN 910-00005-004

    SYSTEM PN 920-00004-004

    S/N 19127

• CONFIGURATION MODULE

     EFD 500

     PN 910-00005-004

     SYSTEM PN 920-00004-005

     S/N 13085

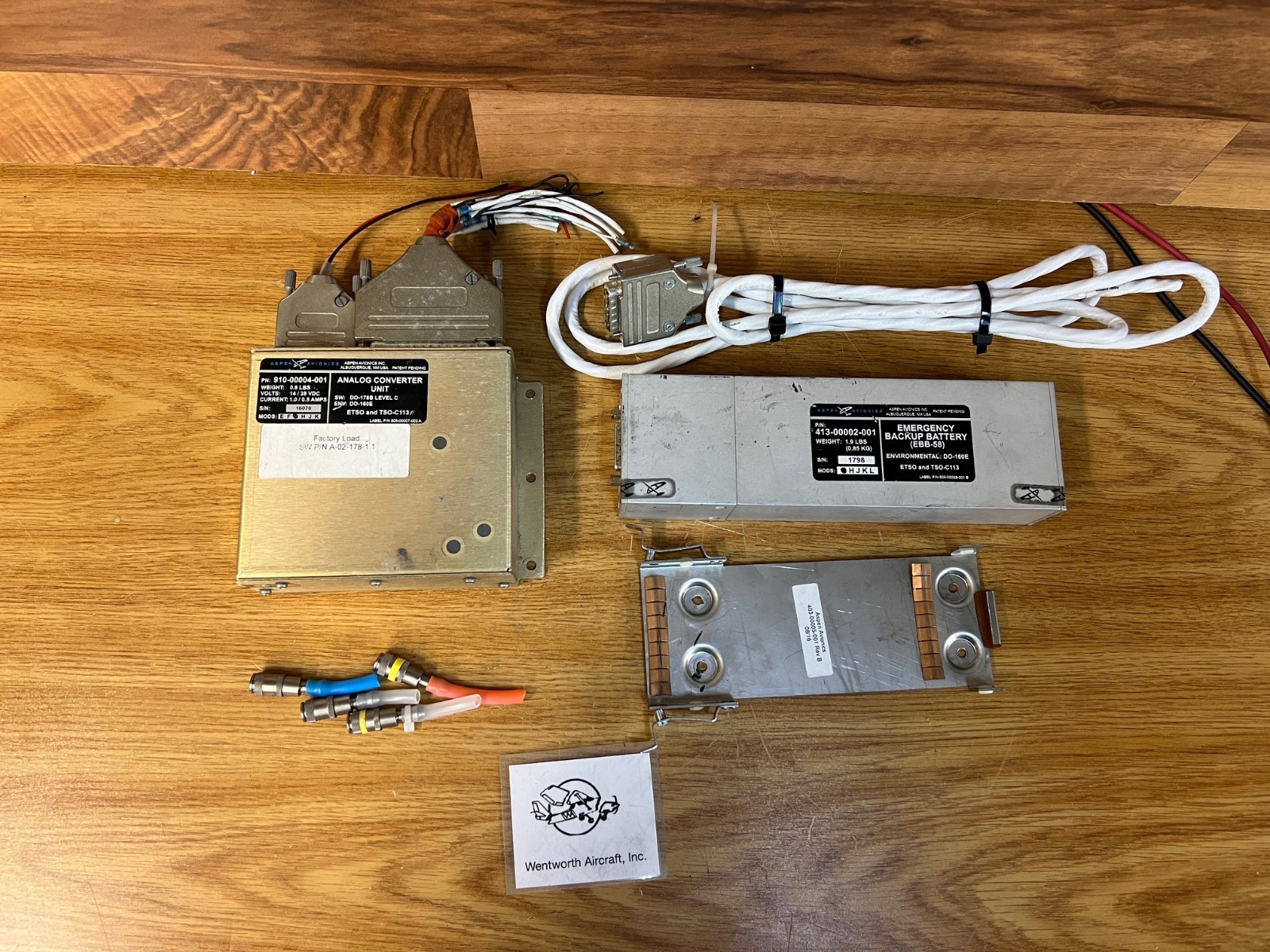

• ANALOG CONVERTER UNIT

    PN 910-00004-001

    S/N 16070

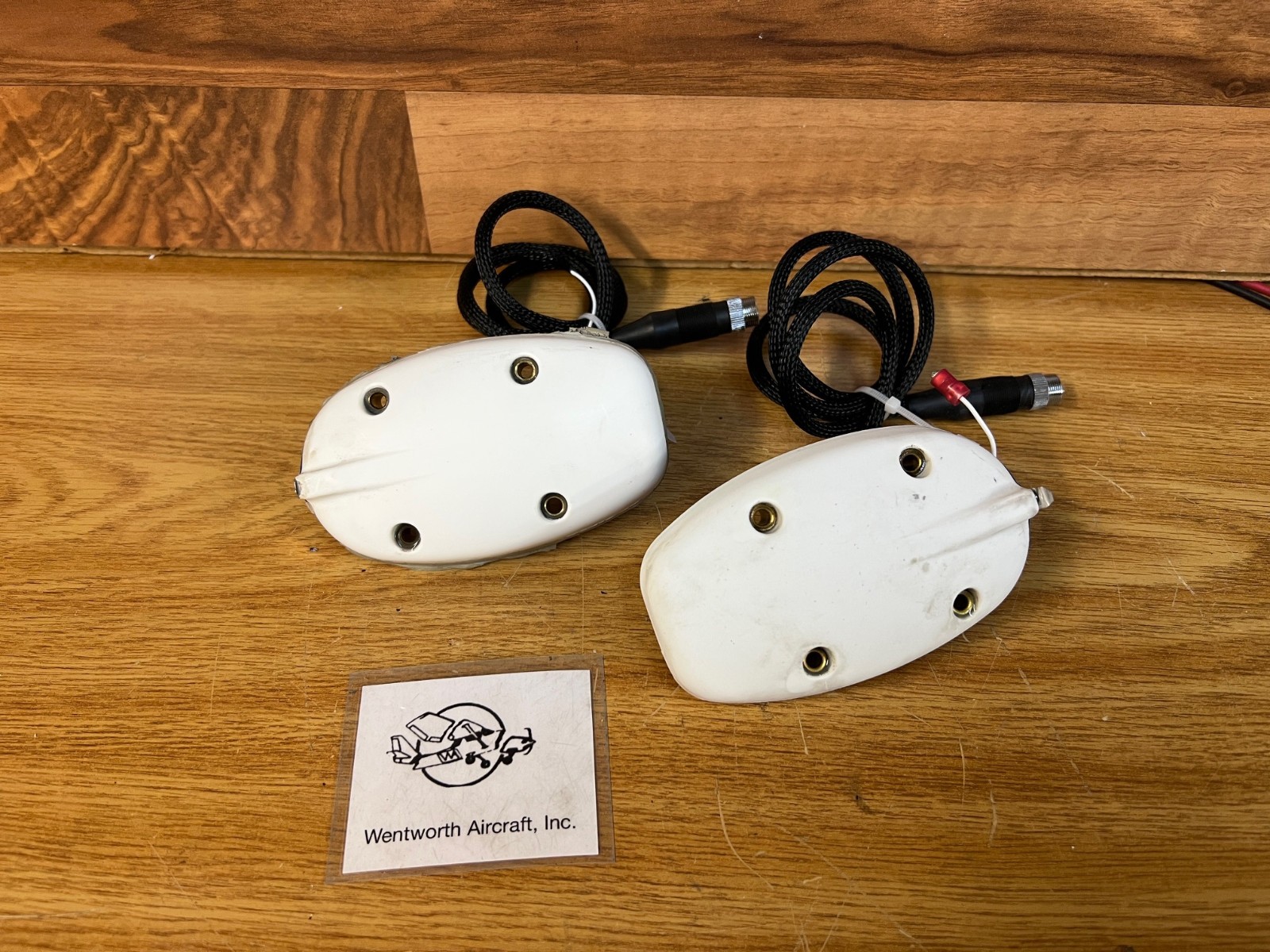

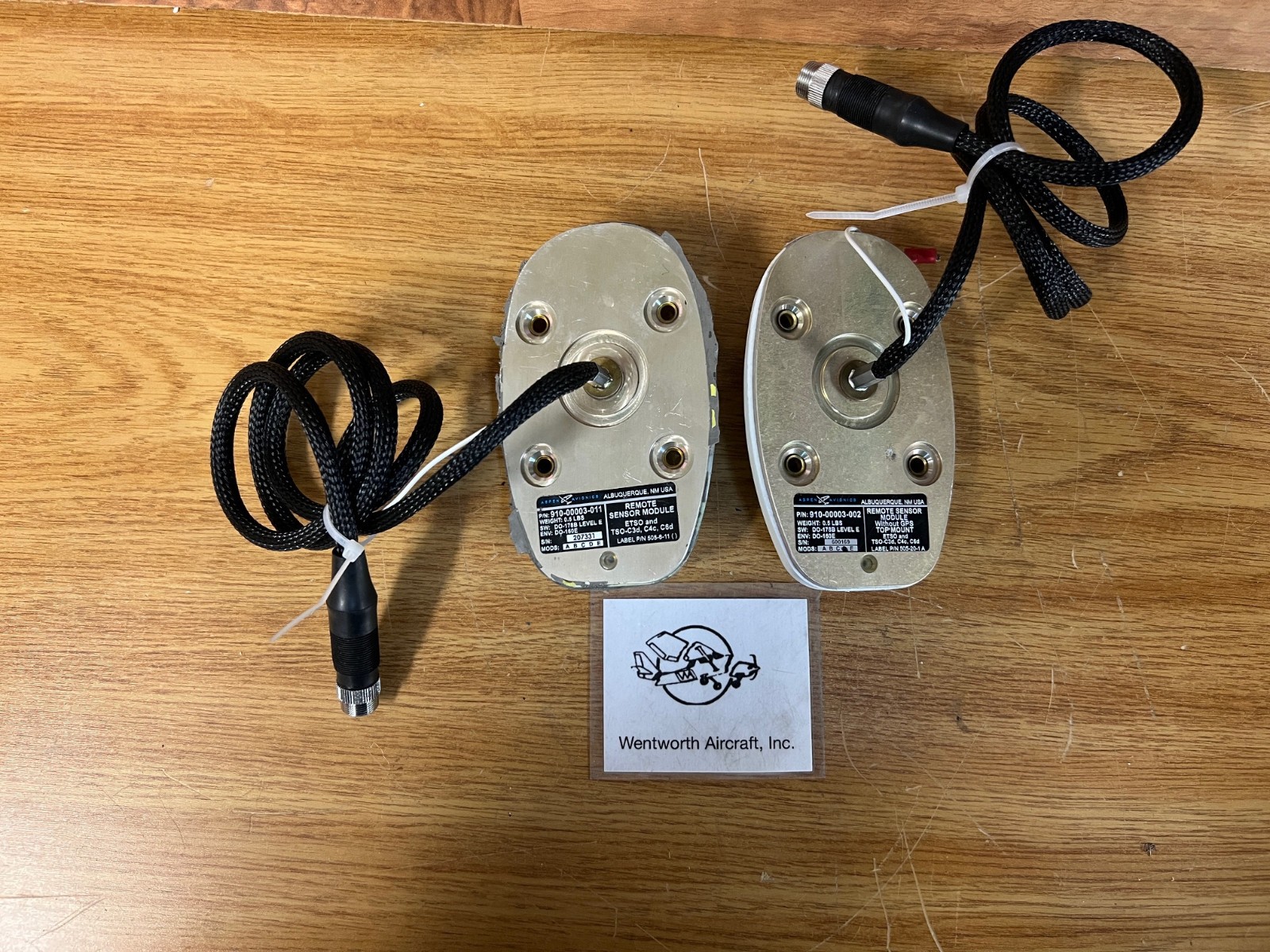

• REMOTE SENSOR MODULE

    P/N 910-00003-011

    S/N 207331

• REMOTE SENSOR MODULE WITHOUT GPS

     PN 910-00003-002

     S/N 600169

• EMERGENCY BACK UP BATTERY(EBB-58)

PN 413-00002-001

BATTERY MOUNTING TRAY

       PN 403-00005-001

• INDICATOR DOUBLER QTY 3

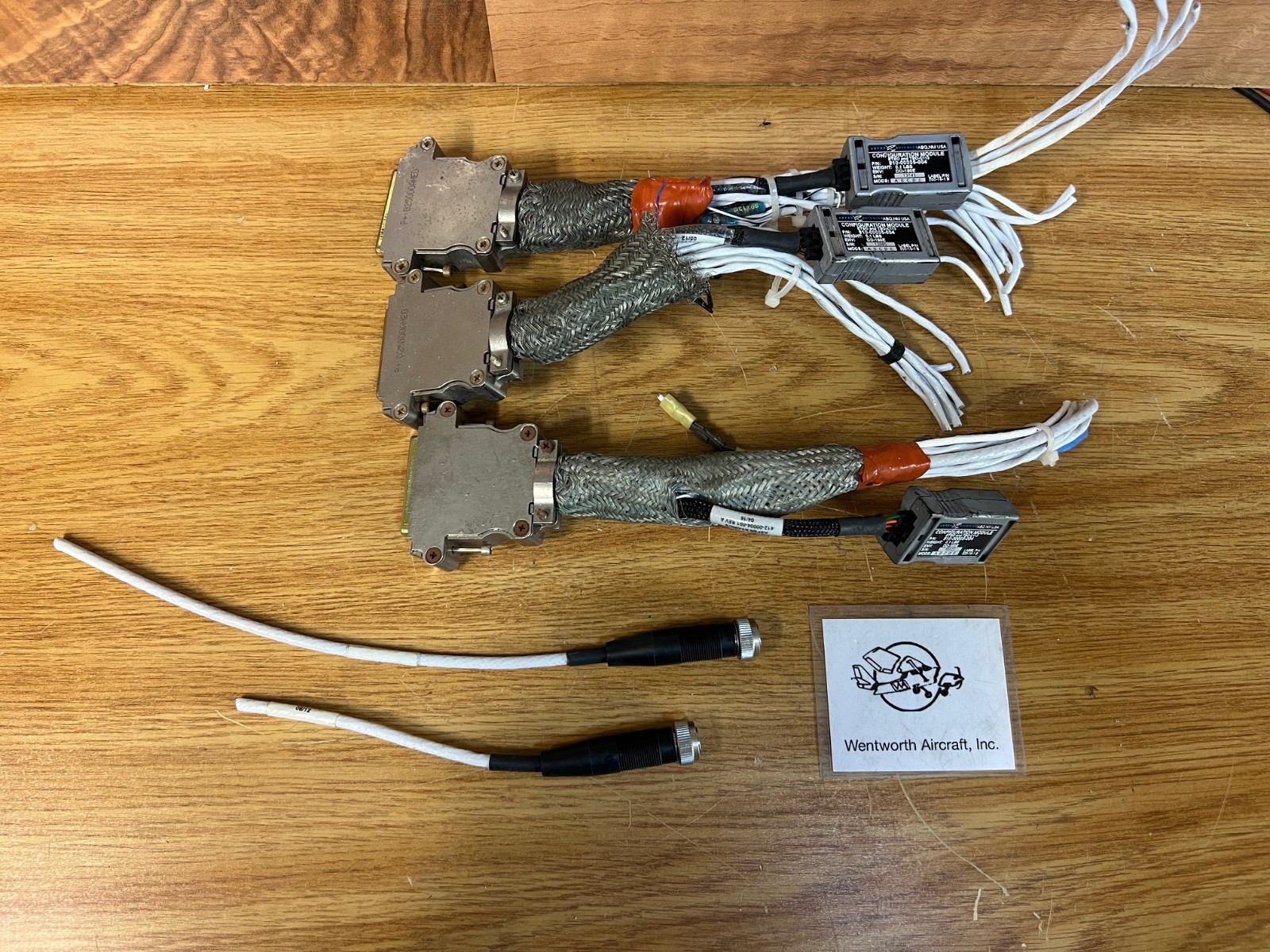

• CONNECTORS
• PITOT/STATIC FITTINGS QTY 4

THIS SYSTEM LOOKS GREAT AND WOULD MAKE AN EXCELLENT ADDITION TO ANY AIRCRAFT

WE ARE THE REAL BRICK AND MORTAR WENTWORTH AIRCRAFT YOU HAVE SEEN ADVERTISED ON PAGE 6 OF TRADE-A-PLANE, AT OUR BOOTHS AT OSHKOSH, SUN-AND-FUN, AOPA, AND ELSEWHERE FOR YEARS !!!!

WENTWORTH AIRCRAFT HAS HAD THOUSANDS OF SATISFIED CUSTOMERS OVER THE LAST 30 PLUS YEARS, AND OUR HUGE eBAY SALES VOLUME AND 100% POSITIVE FEEDBACK ATTESTS TO OUR ATTENTION TO DETAIL AND GREAT EBAY FOLLOW THROUGH.

WHEN YOU BUY AN ITEM THROUGH EBAY FROM US, YOU CAN BE ASSURED THAT WE ARE KNOWLEDGEABLE ABOUT OUR PRODUCT, WE LIST ALL ITEMS AS ACCURATELY AS POSSIBLE, AND THAT WE WILL ANSWER ALL QUESTIONS TRUTHFULLY.

PLEASE ASK ALL QUESTIONS THROUGH THE LISTING(ASK SELLER A QUESTION), BECAUSE THESE QUESTIONS GET ANSWERED IN A MORE TIMELY MANNER.

PLEASE DON'T ASSUME. IF YOU ARE NOT SURE ABOUT ANY FACET OF ONE OF OUR LISTINGS, PLEASE ASK !

SO THAT ALL BIDDERS HAVE THE SAME INFORMATION,WE PREFER NOT TO ANSWER DETAIL QUESTIONS BY PHONE. OUR PHONE SALES STAFF HAS NO DIRECT KNOWLEDGE OF THE ITEMS ON EBAY.

PLEASE BE AWARE THAT

EBAY IS HAVING SOME PROBLEMS WITH THEIR NEW SHIPPING CALCULATOR. WE DO NOT SEND ITEMS DOMESTICALLY BY USPS, SORRY, SO DON’T SELECT THIS OPTION TO DETERMINE YOUR COSTS. WE SEE THE PROBLEM MOSTLY ON HIGH VALUE AVIONICS, SO IF YOU WOULD LIKE AN ACCURATE TO THE DOLLAR QUOTE, PLEASE ASK, THANKS

THIS IS A USED ITEM, AND IT COMES WITH THE WENTWORTH-ON-EBAY 30DAY SATISFACTION GUARANTEE !
