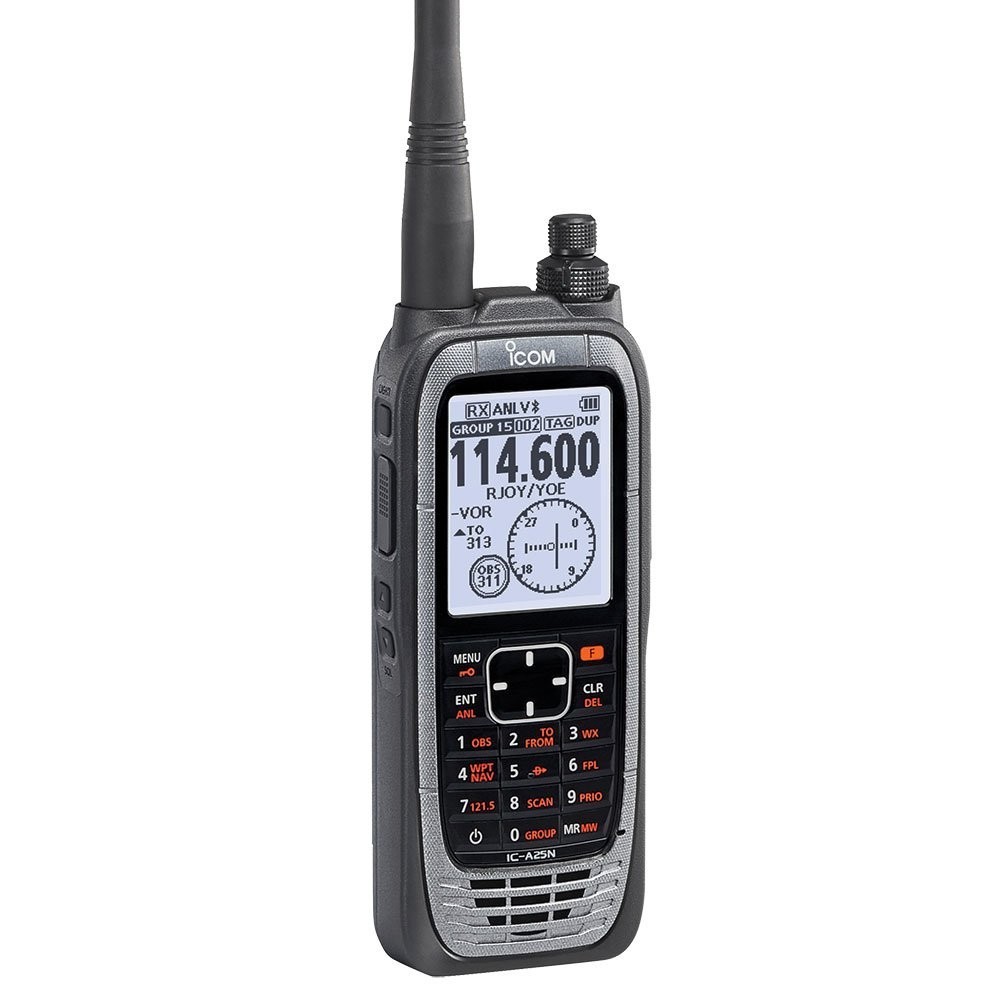

Icom IC-A25N Airband Handheld Transceiver with NAV and COMM Channels [A25N]


Click here to purchase or contact the seller of this item on eBay

Current Price: 699.00 CAD

Thank you for your interest !

This item is new, sealed and genuine. We only trade with providers who provide the highest quality of products.

We are not an authorized distributor, reseller or representative of the product listed .All product names, trademarks, brands and logos used are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

International customers are responsible for all customs, duties, taxes and brokerage fees to be paid to the courier or government. If you need our assistance, please contact us, we will be happy to help and do our best for you!

FREE SHIPPING USA & CANADA


The A25N is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. This handheld features built-in Bluetooth®, GPS and VOR navigation.


General

BRAND : ICOMMODEL : IC-A25N
Number of memory channels300 channels/15 groups
Channel spacing25/8.33 kHz
Type of emission6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately)Tx HighLess than 1.8 A
Rx Max. audio/Stand-byLess than 500 mA
90 mA typ. (GPS, Bluetooth, Light: OFF)
Antenna impedance50 Ω
Operating temperature range−10 °C to +60 °C;
−14 °F to +140 °F
Dimensions (W × H × D;)
(Projections not included)		58.9 × 148.4 × 31.8 mm;
2.3 × 5.8 × 1.3 in
Weight (approximately)340 g; 12.0 oz (with BP-288)

Transmitter

BRAND : ICOMMODEL : IC-A25N
Output power (at 7.2 V DC)6.0/1.8 W typical (PEP/carrier)
Audio harmonic distortionLess than 10% (at 60% modulation)
Hum and noise ratioMore than 35 dB
Spurious emissionsMore than 46 dB
(Except operating frequency ±62.5 kHz in 25 kHz channel spacing.)
(Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.)
Frequency stability±0.4 kHz

Receiver

BRAND : ICOMMODEL : IC-A25N
Intermediate frequencies46.35 MHz/450 kHz (1st/2nd)
SensitivityNAV/COM
(6 dB S/N)		Less than 0 dBμ
WX (12 dB SINAD)Less than -8 dBμ
Squelch sensitivity (at threshold)Less than 0 dBμ (AM), Less than -5 dBμ (FM)
Spurious responseMore than 60 dB (AM), More than 30 dB (FM)
Hum and noiseMore than 35 dB (at 30% modulation)
Audio output powerExternal speaker530 mW typical (AM 8 Ω/60% Mod at 10% distortion)
Internal speaker1200 mW typical (AM 8 Ω/60% Mod at 10% distortion)
Ext. speaker connector3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

Measurements made in accordance with FCC Part87.
All stated specifications are subject to change without notice or obligation.
