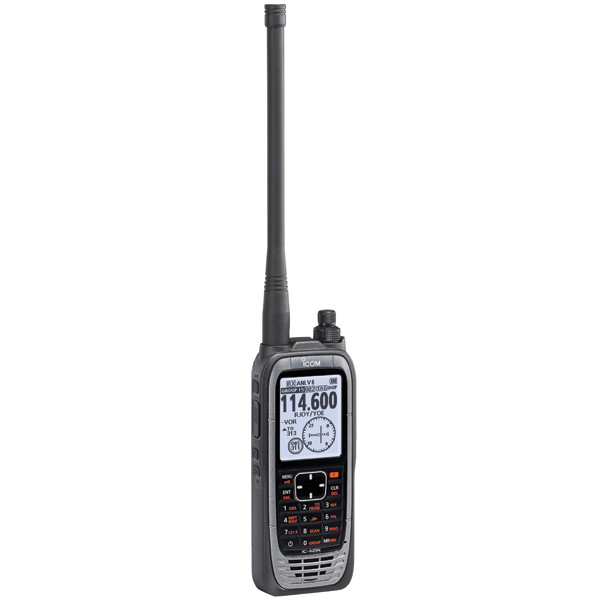

ICOM IC-A25N NAV/COM VHF AIRBAND HANDHELD RADIO TRANSCEIVER with GPS & Bluetooth
The IC-A25N VHF Airband Transceiver Radio features a powerful six-watt transmitter with built-in GPS, Bluetooth®, and an IP57 waterproof rating. The simplified waypoint NAV feature guides pilots to their destination using the current position from GPS as well as from GLONASS and SBAS. The waypoint NAV feature has two functions: Direct-to NAV and Flight-plan NAV. In Direct-to NAV mode, the IC-A25N provides guidance to a specified waypoint; in Flight-plan NAV mode, pilots are guided through a series of sequential waypoints. The IC-A25N can store up to 10 flight plans and 300 waypoints. Position information imported from an Android™ or iOS™ device can be used as a waypoint. With built-in Bluetooth, third-party wireless headsets provide convenient, hands-free operation; optionally, with the use the VS-3 bluetooth headset, the side tone function can be used. A large 2350 mAh Li-ion battery provides operation times up to 10.5 hours. The easy to use interface combined with a large 2.3 inch display offers stress-free programming and in-flight operation.
Output power: 6W typ. (PEP), 1.8W (CW)
Frequencies: TX (COM); 118.00-136.975MHz
RX (COM/NAV) ; 108.00-136.975MHz
RX (Weather) ; 161.650-163.275MHz
Channel spacing: 8.33/25KhZ
Channels: 200 (20CH x 10 banks)
Battery life: 2350mAh Li-ion battery, up to 10.5 hours
Typical operation with Tx:Rx:Stand-by duty ratio = 5:5:90, (Bluetooth OFF, GPS ON)
Version: Communications plus navigation

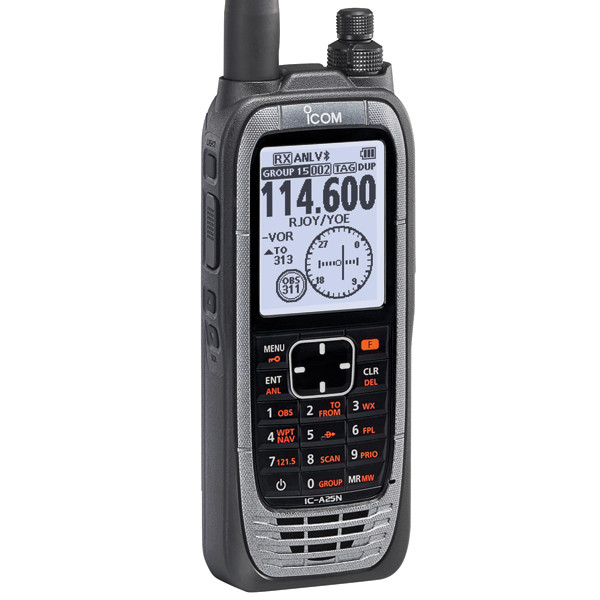

Large easy to use LCD
The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.
Built-in GPS and Bluetooth® have redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.
VOR navigating functions
CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.
