Garmin #2 GNS-530 Nav/Com/GPS 14/28V System P/N: 011-0055-30


Click here to purchase or contact the seller of this item on eBay

Current Price: 4,200.00 USD

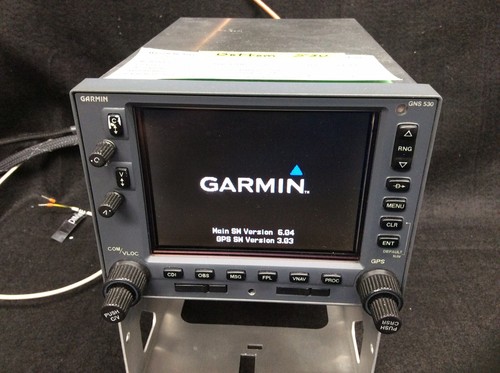

Garmin GNS-530 Nav/Com/GPS 14/28V System (Non-WAAS)

P/N: 011-00550-30

Unit comes with rack, backplate, connectors, and GPS Antenna.

*Note* Unit has “VLOC Failing” message, buttons worn, knob hard to turn, intermittent buttons, and the lens film on the display starting to come off. Unit can be repaired by Garmin.

Features:

  • Combines 10 watt VHF communications transceiver, VHF navigation and UHF glideslope receivers, 12-channel GPS receiver with color moving map
  • 760 channel VHF comm. with 25khz spacing; software configurable for 2280 channels (8.33 kHz spacing) for Europe
  • Provides both course deviation and optional roll steering outputs to aircraft flight guidance systems which will enable ARINC 424 lateral guidance procedures including IFR arrivals, departures and approaches
  • Automatically will nominate appropriate VOR and localizer frequencies for VHF nav aid
  • Sends correct ATIS, approach, clearance, tower or ground control frequency to the comm. radio at the touch of a button
  • 16-color, active-matrix LCD measuring approximately 5" display with a resolution of 128 by 240 pixels
  • Cartographic database displays geopolitical boundaries, federal interstate highways, state routes, major local thoroughfares, plus railroads, rivers, coastlines and lakes
  • Can be interfaced to main indicators such as KI-202/203/204/206/208/208A/209/209A as well as KPI-552/553A (see
  • Can be interface to Bendix/King RMI units such as and
  • Can tune most panel mount DME and remote mount DME units
  • Interfaces to ARINC 429 EFIS systems such as Sandel SN3308 and Bendix/King EFIS 40 & 50
  • RS-232 and RS-422 serial ports for interfacing
  • ARINC 429 digital output (GAMA standard) for left/right analog course deviation, ng, encoded or greycode altitude, and basic fuel flow sensor links
  • Fuel Flow page configurable to allow for simultaneous display of left and right engine fuel flows
  • ARINC 429 digital output compatible with some autopilots which can accept ARINC 429 roll-steering information
  • ARINC 429 output data can be used with digital to analog adapter such as Allied Signal KA-90 to produce roll-steering signal used by autopilots systems requiring analog signal
  • Accepts RS-232 fuel flow data from external sources
  • 14/28 Volt operation
  • Interfaces to BF Goodrich WX-500 Weather Mapping Sensor and Skywatch Traffic Advisory System for combined moving map display with nav data and weather/traffic information
  • Interfaces to Ryan 9900B / 9900BX TCAD and Goodrich Skywatch to display traffic information
  • XM WX satellite weather service via GDL 69
  • WAAS GPS receiver allows for primary navigation and vertical guidance for LPV, L/VNAV, and LNAV+V approaches
  • Updated software to current level.


Shipping will be UPS only.

Most units shipped within 1-2 business days.

We are closed on weekends and major holidays.

We do not ship internationally.

Shipping only to the Continental United States including Hawaii and Alaska.
