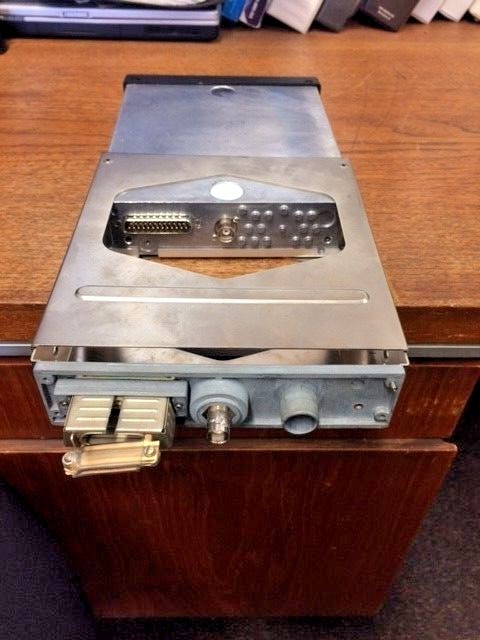

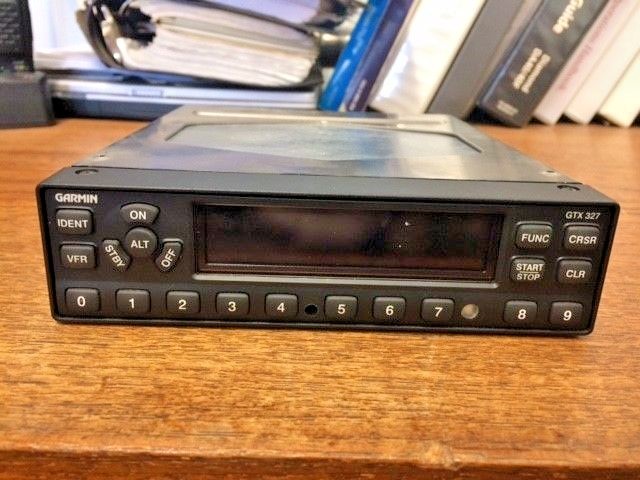

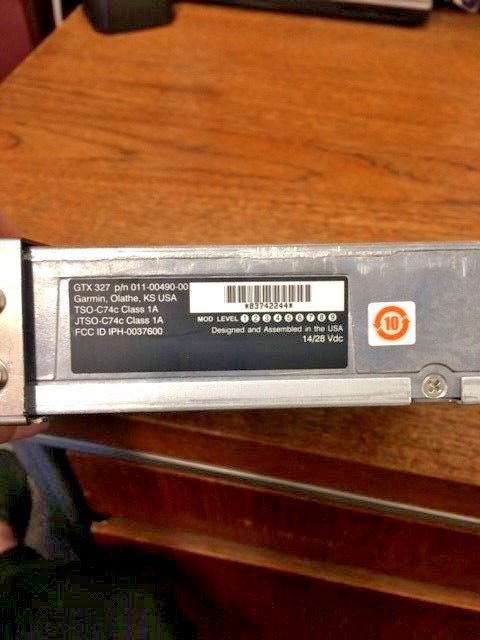

Garmin GTX 327 Panel Mounted Mode C Digital TransponderClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 1,250.00 USD |
GTX 327
FEATURES
- Solid-state Mode C digital transponder
- TSO certified
- Solid-state transmitter provides 200 watts nominal power output
- Low power consumption, low heat emission, no warm up time
- Easy-reading DSTN Liquid Crystal Display reverses yellow numbers out of black for optimal viewing
- Dedicated VFR button allows for quick and easy 1200/VFR squawking
- Offers timing functions such as flight time and count-up/down times
- Offers flight level and pressure altitude
SPECIFICATIONS
| TSO COMPLIANCE: | C74c Class 1A | TEMPERATURE RANGE: | -20C to +55C |
| WEIGHT: | 2.1 lbs | POWER REQUIREMENTS: | 11.0 to 33.0 VDC; Max power input: 15 watts |
| ALTITUDE: | 50,000 feet | HUMIDITY: | 95% @ +55C for 16 hours; 85% @ +38C for 32 hours |
| TRANSMITTER FREQUENCY: | 1090 MHz | TRANSMITTER POWER: | 200 watts nominal |
| RECEIVER SENSITIVITY: | -74 dm nominal for 90% replies | MODE A CAPABILITY: | 4096 ident codes |
| MODE C CAPABILITY: | 100 foot increments from -1000 to 63,000 feet | DIMENSIONS: | 8.2"L x 6.25"W x 1.63"H |
|
|
|
